Standard or fully balanced type for your ship design. With SS316L material option or with H.D.G. finishing for your multi purposes.All high holding power anchor was approved by ABS,LR,DNV,GL,BV,RINA,BKI,CCS etc.
Nantong Jakarta Welded Marine Ship Delta Anchor
We supply various high holding power anchors to be used for ships, fleets, mooring ships, etc.
Payment Type: T/T,L/C
Incoterm:FOB,CIF
Min. Order:1 Set/Sets
Category: Marine Fittings

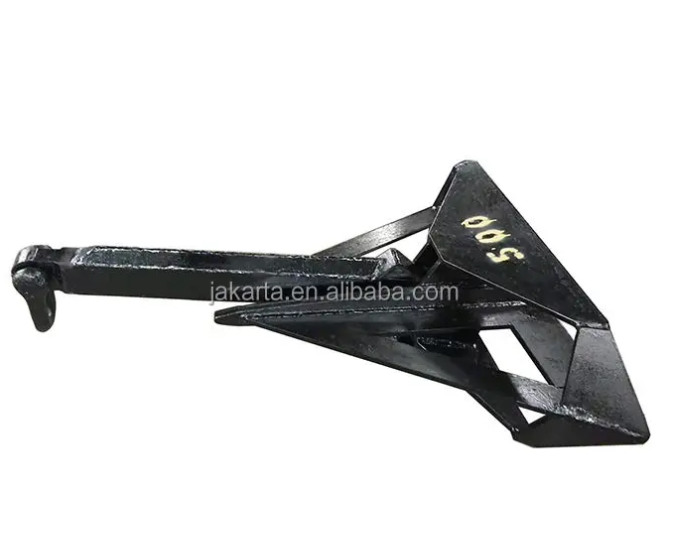

High Holding Power Welded Anchor (HHP type)
High holding power anchor has two types: one is stock HHP anchor,like danforth anchor, and another one is stockless HHP anchor . Such as AC-14 anchor. It is widely used for dredging, offshore mooring, fish farm, and yachting operation.
Name: | High Holding Power Welded Anchor (HHP type) |
Material: | ZG200-400C,Q235 |
Nominal Weight: | 10KGS to 10000KGS |
Certificate: | ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS |
Delivery: | 7-15 days or earlier after confirm order |
Port of loading: | Qingdao, Shanghai or as request |
Packing details: | Nude Packing or as request |
Trade terms: | FOB, CFR, CIF,DAP,DDU etc. |
MOQ: | 1 pcs |
Surface: | Black bitumen paint, anti-rusting paint or customized |

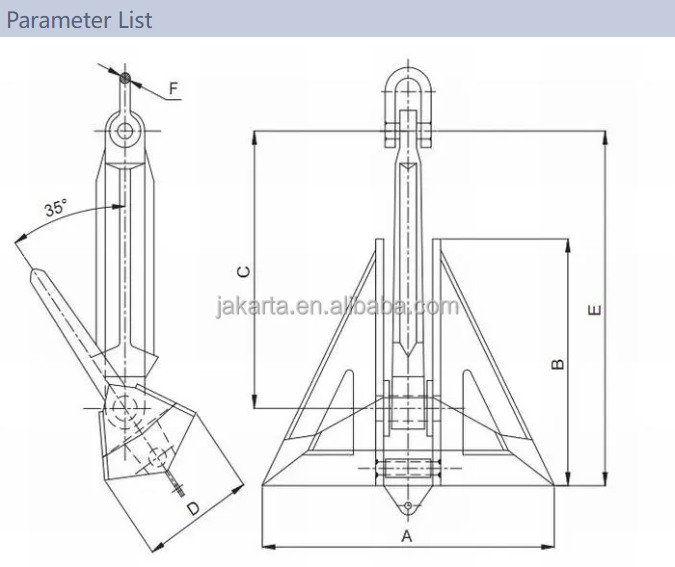

Nominal Weight | Size(mm) | |||||
(KG) | A | B | C | D | E | F |
300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
1080 | 1915 | 1530 | 1686 | 722 | 2200 | 62 |
2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
7000 | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
8000 | 3730 | 2900 | 3360 | 1420 | 43000 | 130 |
9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
12000 | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
25000 | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |
30000 | 6100 | 4880 | 5486 | 2305 | 7225 | 195 |
35000 | 6424 | 5138 | 5775 | 2426 | 7605 | 205 |
40000 | 6715 | 5370 | 6036 | 2536 | 7948 | 210 |
45000 | 6986 | 5588 | 6184 | 2640 | 8270 | 220 |
50000 | 7230 | 5785 | 6500 | 2730 | 8560 | 225 |
55000 | 7470 | 5975 | 6715 | 2820 | 8840 | 230 |
60000 | 7690 | 6150 | 6910 | 2940 | 9100 | 240 |
65000 | 7900 | 6315 | 7100 | 2980 | 9350 | 245 |
70000 | 8095 | 6475 | 7275 | 3060 | 9580 | 250 |
75000 | 8235 | 6590 | 7405 | 3110 | 9750 | 255 |
80000 | 8460 | 6770 | 7610 | 3195 | 10020 | 260 |
85000 | 8625 | 6900 | 7750 | 3255 | 10210 | 265 |
90000 | 8800 | 7040 | 7910 | 3325 | 10420 | 270 |
95000 | 8960 | 7170 | 8055 | 3385 | 10610 | 280 |
100000 | 9110 | 7285 | 8190 | 3440 | 10780 | 280 |
Other Anchors
We supply various high holding power anchors
- We supply various high holding power anchors to be used for ships, fleets, mooring ships, etc.
- Made of heavy grade cast steel to assure the stability, safety and durability in sailling.
- Anchor weight from 56kg to 100000kg.
- Finish: black bitumen paint or hot dip galvanized
We supply various high holding power anchors
- We supply various high holding power anchors to be used for ships, fleets, mooring ships, etc.
- Made of heavy grade cast steel to assure the stability, safety and durability in sailling.
- Anchor weight from 56kg to 100000kg.
- Finish: black bitumen paint or hot dip galvanized
- We supply various high holding power anchors to be used for ships, fleets, mooring ships, etc.
- Made of heavy grade cast steel to assure the stability, safety and durability in sailling.
- Anchor weight from 56kg to 100000kg.
- Finish: black bitumen paint or hot dip galvanized
